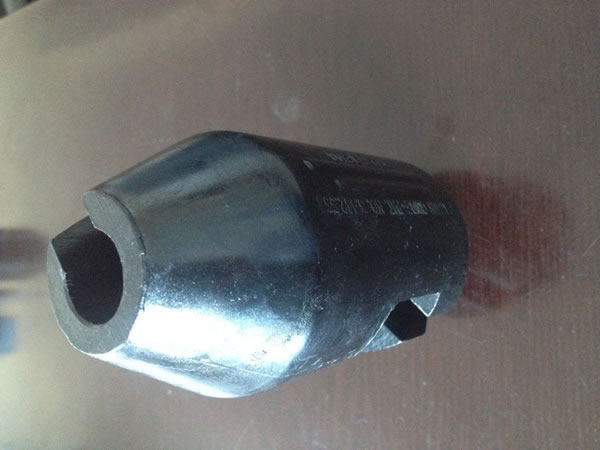

Inserted Sucker Rod Guide

Description

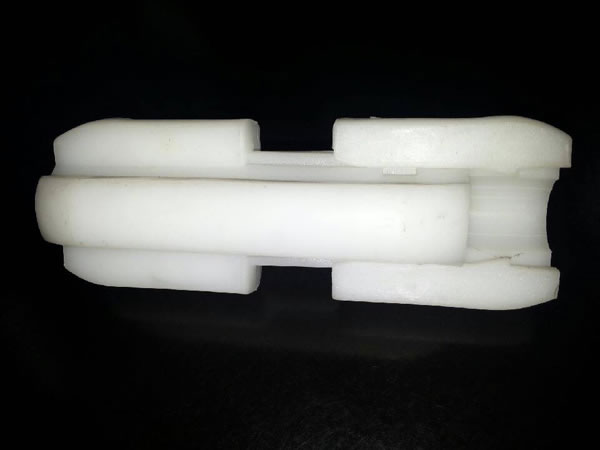

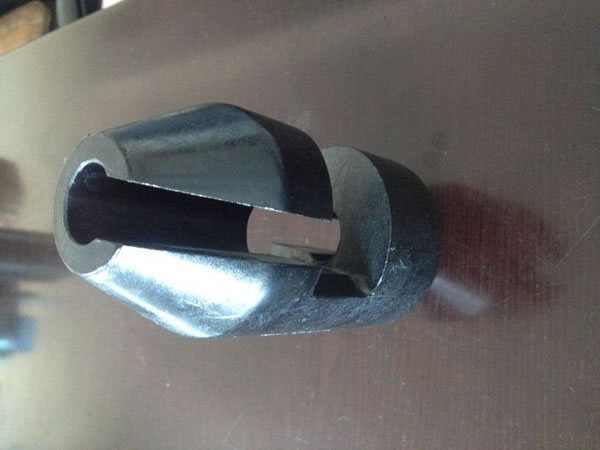

Inserted sucker rod guide, snap on sucker rod guide and single slot sucker rod guide are firstly molded, and then installed on rod body to centralize the sucker rod and reduce paraffin build-up.

Features
It’s easy and convenient to install these three kinds of guides on any part of the sucker rod with low cost and high working efficiency.

Advantages
Inserted sucker rod guide, snap on sucker rod guide and single slot sucker rod guide can be installed on any part of the sucker rod with small volume and low cost. They are the most economical and practical rod guides.

Parameter
General Dimensions of Sucker Rod Guides
No. Guide Type Size (in) Outside Diameter (mm) Material
1 Inserted Sucker Rod Guides 5/8 46 PA6, PA66, PPA
2 5/8 58
3 3/4 58
4 7/8 58
5 1 72
6 Snap On Sucker Rod Guide 3/4 58 PA6, PA66, PPA
7 7/8 58
8 Single Slot Sucker Rod Guide 3/4 46 UHMWPE, PPA
9 7/8 46
10 1 50
11 1-1/8 62
