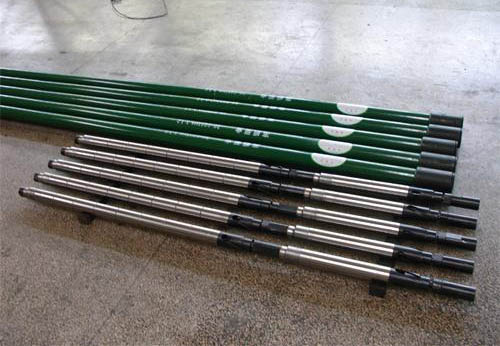

Tubing Pumps

The workover process of tubing pump is: firstly the barrel being connected to the tubing is directly run into the well at desired depth and then the plunger is run into the barrel with the sucker rod. The applicable tubing pump is larger in size than rod pump in the same tubing. Tubing pump has simple structure so the displacement is bigger and it is suitable for the shallower well with shallow depth and high production.

The THD type of tubing pump means that its standing valve is directly connected to the barrel and it cannot be pulled up separately with the barrel. The THC or THMtype of tubing pump means that its standing valve can be pulled up separately with the barrel. The seating assembly of THC pump is cup type and for THM is mechanical type. The THC and THM type of tubing pump are suitable for the frequently work-over wells.

Specifications Of Tubing Pumps:


Model
mm(in)Nominal Dia.
m(ft)Plunger Length
Stroke m
m3/d Pump Constant
Tubing And Thread
In Sucker Rod
20-125TH
32(1.25)
1.2-1.8
(4-6)
0.6-7.3
1.14
2⅜NU/EU
¾
25-125TH
32(1.25)
0.6-7.3
1.14
2⅞NU/EU
¾
20-150TH
38(1.50)
0.6-7.3
1.64
2⅜NU/EU
¾
25-150TH
38(1.50)
0.6-7.3
1.64
2⅞NU/EU
¾
20-175TH
44(1.75)
0.6-7.3
2.24
2⅜NU/EU
¾
25-175TH
44(1.75)
0.6-7.3
2.24
2⅞NU/EU
¾
25-225TH
57(2.25)
0.6-7.3
3.69
2⅞NU/EU
¾
30-275TH
70(2.75)
0.6-7.3
5.50
3½NU/EU

35-325TH
83(3.25)
0.6-7.3
7.70
4NU/EU

40-375TH
95(3.75)
0.6-7.3
10.26
4½NU/EU
1

  • Subsurface Sucker Rod Pumps
  • Subsurface Sucker Rod Pumps
    Manufactured strictly to API Spec 11AX, Liande tubing and rod pumps are well suited for a wide range of pumping applications. Each pump is machined with an extra small clearance between the plunger and the barrel to provide maximum performance and a long service life....
