Thickness of Coating | Hardness of Coating | Chemical Composition of Coating | |
Elements | Range | ||
0.008in to 0.020in (0.20mm to 0.51mm) |
≥ 480 HV200 | Carbon | 0.50 / 1.00 |
Silicon | 3.50 / 5.50 | ||
Phosphorus | 0.00 / 0.02 | ||
Sulfur | 0.00 / 0.02 | ||
Chromium | 12.00 / 18.00 | ||
Boron | 2.50 / 4.50 | ||
Iron | 3.00 / 5.50 | ||
Cobalt | 0.00 / 0.10 | ||
Titanium | 0.00 / 0.05 | ||
Aluminum | 0.00 / 0.05 | ||
Zirconium | 0.00 / 0.05 | ||
Nickel | Remainder | ||

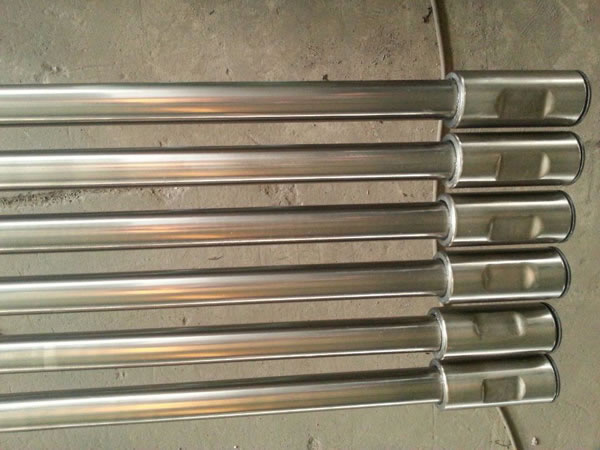

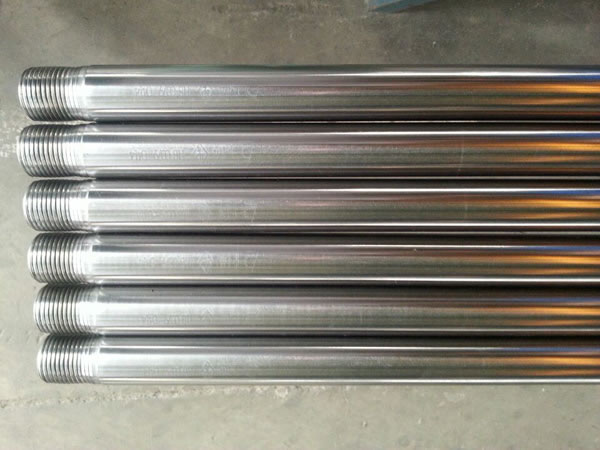

Note: the outside diameter (OD) of finished spray metal polished rods shall conform to general dimensions and tolerances for polished rods, except the OD tolerance between the pin end and the beginning of spray metal, which shall be +0.005in. / -0.040in. (+0.13mm / -1.02mm). |
