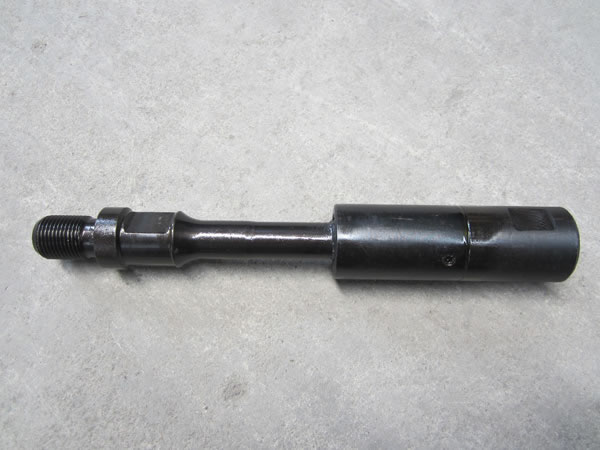

General Dimensions of Anti-stripping Sucker Rod | ||||
No. | Type |
Size (D × L) (mm) |
Tubing (mm) | Thread of Two Ends |
1 | CFTGQ 19/19-50 | 50 × 300 | 73 | PJG 19/19 |
2 | CFTWX 19/19-50 | |||
3 | CFTQR19/19-46 | 50 × 475 | ||
4 | CFTWX 19/19-57 | 57 × 317 | 88.9 | |
5 | CFTGQ 22/22-50 | 50 × 300 | 73 | PJG 22/22 |
6 | CFTWX 22/22-52 | 52 × 317 | ||
7 | CFTGQ 22/22-55 | 55 × 300 | 88.9 | |
8 | CFTWX 22/22-57 | 57 × 317 | ||
9 | CFTGQ 25/25-50 | 50 × 300 | 73 | PJG 25/25 |
10 | CFTWX 25/25-52 | 52 × 317 | ||
11 | CFTGQ 25/25-55 | 55 × 300 | 88.9 | |
12 | CFTWX 25/25-57 | 57 × 317 | ||
13 | CFTGQ 19/22-50 | 50 × 300 | 73 | PJG 19/22 |
14 | CFTWX 19/22-52 | 52 × 317 | ||
15 | CFTGQ 19/22-55 | 55 × 300 | 88.9 | |
16 | CFTWX 19/22-57 | 57 × 317 | ||
17 | CFTGQ 22/25-50 | 50 × 300 | 73 | PJG 22/25 |
18 | CFTWX 22/25-52 | 52 × 317 | 88.9 | |
19 | CFTGQ 22/25-55 | 55 × 300 | ||
20 | CFTWX 22/25-57 | 57 × 317 | ||
21 | CFTQR 25/25-64 | 64 × 523 | 114.3 | PJG 25/25 |
