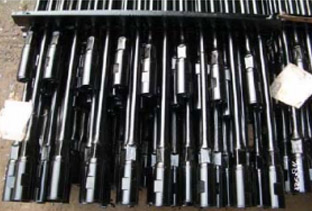

API Oil Pump Drive Rods

Drive Rods for Progressing Cavity Pump applications are available in 1” (25.40mm), 1 1/4” (31.75mm) and 1 1/2” (38.10mm) body diameter and in 25’ (7.62m) lengths.

Products Details

of

API Oil Pump Drive Rods

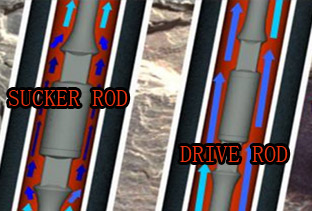

1.Specifically designed to withstand the high torque levels experienced in Progressing Cavity Pump applications.

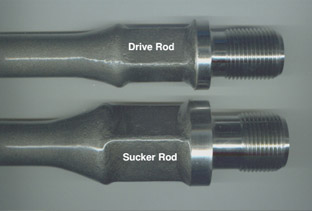

2.Furnished with modified pins to maximize their torque capacity.
3.Modified pins provide a minimum 50% increase in torque over conventional API thread connections.
4.Available in 1” (25.40mm), 1-1/4” (31.75mm) and 1-1/2” (38.10mm) body diameter.
5. Full length normalized to relieve residual stresses, air quenched and tempered to refine and homogenize the grain structure.

Main Mechanical Properties

Class	Tensile Rm MPa	Yield Rel MPa	Elongation A 200mm %	Reduction of Area Z %	Airy impact energy(Type)J
D	795~965	≥590	≥10	≥50	≥60
H	965~1195	≥795	≥10	≥45	≥60

Specifications

of

API Oil Pump Drive Rods

:

Nominal Size in	O.D. mm	End Size in	Length(mm)
			Drive Rod	Pony Rod
1	25.40	7/8	7620 8000 9140	600, 1200 1800, 2400 3000, 3600
11/8	28.58	1
11/4	31.80	1
11/2	38.10	11/8
